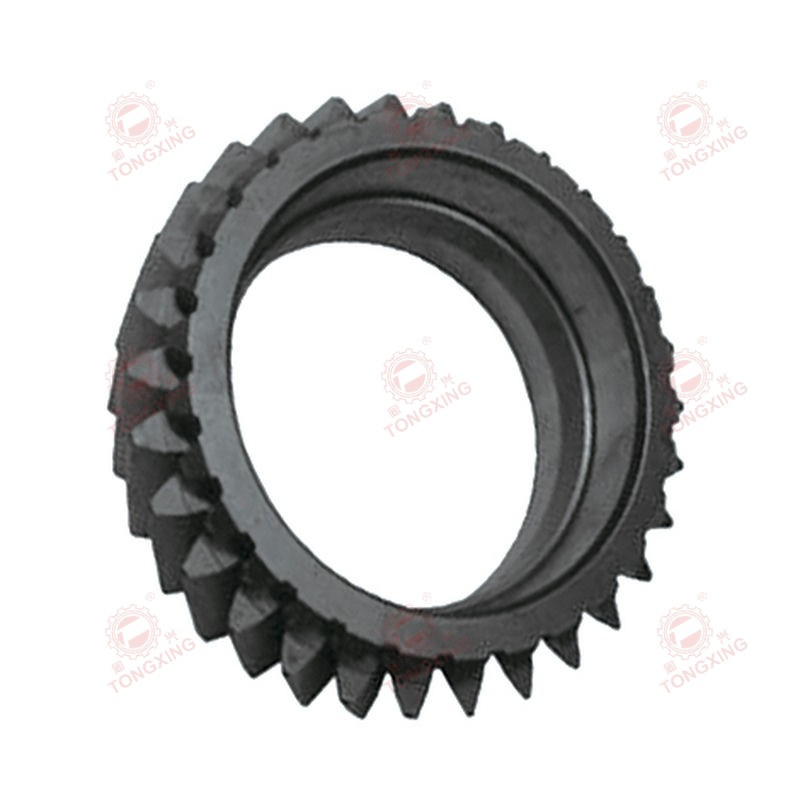

ZF 4TH SPEED GEAR 30T (PART #1315304017) - HEAVY-DUTY TRANSMISSION GEAR FOR ZF WG200 & AP400 SERIES
ZF 1315304017
OEM Code :
1315304017Produced by :
TONGXING GEAR (ORIGIN:CHINA)Suitable to :
ZFCROSS REFERENCE :
1291081, 81323010860, 5001842938, 1315304017VERSIONS :
16S151Product Overview
This product is the fourth gear 30-tooth gear for ZF transmission (Part No. 1315304017), specially designed to fit ZF WG200 series transmission and AP400 planetary axle, suitable for heavy-duty trucks, wheel loaders and construction machinery. Made of high-strength alloy steel, precision heat treatment process ensures wear resistance and stability under high loads, with a maximum torque of 1500 Nm, perfectly matching the original performance parameters.
Core selling points
Precise fitment: Strictly following the original ZF specifications, it seamlessly replaces worn or damaged gears to ensure the efficient operation of the gearbox 28.
Durability: Carburized and quenched surface hardness of HRC 58-62 extends service life to over 20,000 hours10.
Wide compatibility: Supports WG200 gearboxes (4 forward/3 reverse gears) and AP400 series axles, covering industrial scenarios with dynamic loads of 10.7-32 tons8.
High-performance lubrication compatibility: can be used with UNIL ZF series synthetic gear oil, adaptable to extreme temperatures from -27°C to 222°C, reducing friction loss.
Technical Parameters
Number of teeth: 30T
Applicable gears: 4th gear
Maximum input speed: 2000 rpm
Rated torque: 1500 Nm (sudden stopping torque up to 2 times)
Operating temperature: -20°C to +150°C
Protection class: IP54 (dustproof and waterproof)
Basic Info.
| Model NO. | Certification | IATF16949 | |
| Brand | TX | Quality | High Quality; OEM Original |
| Custom-made | Support Customization | Transport Package | Standard Export Packing |
| Range OF Application | Repair and replacement | ORIGIN | Shishi,Fujian，China |
| Material | 20CrMnTiH | Production Capacity | Tongxing |
Product Description
| Gear model | Customized gear accoding to customers sample or drawing |
| product name | Customized Bevel Gear for Reducer/ Oil Drilling Rig/ Construction Machinery/ Truck |
| material | stainless steel , iron , aluminum etc . |
| size | IATF16949 standard ,customer requirements |
| BORE | Finished bore, Pilot Bore, Special request |
| surface treatment | Carburizing and Quenching,Tempering ,Tooth suface high quenching Hardening,Tempering |
| Processing Method | Molding, Shaving, Hobbing, Drilling, Tapping, Reaming, Manual Chamfering, Grinding etc |
| Heat Treatment | Quenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding...... |
| Package | Wooden Case/Container and pallet, or made-to-order |
| Certificate | IATF16949 |
| Machining Process | Gear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear Lapping ,gear accuracy testing |
FAQ
| Q1. What is your terms of packing? |
| A: Generally, we pack our goods in Crates/Pallet/Boxes/Cartons. |
| Q2. How about your delivery time? |
| A: Generally, it is 3-7days if the goods are in stock,or it is need 20-30days to producing, |
| Q3. Can you produce according to the samples? |
| A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures. |
| Q4. Do you test all your goods before delivery? |
| A: Yes, we have 100% test before delivery |
| Q5.Do you provide samples?is it free or extra? |
| A:yes,we could offer the sample for free,but do not pay the cost of freight. |
